High Speed Automatic Double Loop Punching and Wire-O Binding Machine with Separate Cover Punching and Optional Calendar Hanger

Introduction

 In modern binding production, you need a machine that combines every step from spool to finished book without extra handling. The Automatic Double Loop Punching and Wire-O Binding Machine integrates unwinding the spool, loop cutting, punching, conveying, and closing into one smooth line. It punches the bigger cover and inner paper separately, works for various double loop wire books, notebooks, and table calendars, and comes with an optional calendar hanger device and hardcover manual punch. With only 1‑2 operators, easy adjustment, high speed, and stable performance, this machine is built to improve your efficiency.

Automatic Double Loop Wire Punching and Binding Machine

Complete Integration from Spool to Closed Book

Traditional binding often requires separate machines for unwinding wire, cutting loops, punching holes, inserting wire, and closing. This machine eliminates those handoffs. It starts by unwinding the double loop wire directly from a spool, then precisely cuts the loops to size, punches both cover and inner paper, conveys the book block, and finishes by closing the wire loops. All operations are automatic. This integration saves floor space, reduces material handling, and avoids alignment errors. The result is a steady workflow that produces finished wire‑o bound books at speeds from 800 to 2000 books per hour, depending on the job.

Bigger Cover and Inner Paper Punched Separately for Perfect Alignment

A common problem with wire‑o binding is that the cover and inner pages can shift, especially when the cover is larger or made of thicker material. This machine solves that by punching the bigger cover and inner paper separately. Each part goes through its own punching station with independent settings. That means you can use an oversized cover without jamming or worrying about hole mismatch. Every page and cover aligns perfectly when assembled. Whether you produce notebooks, table calendars, or other double loop wire books, this separate punching feature gives your products a clean, professional finish.

1. Wide Size and Thickness Range for Many Applications

The machine is designed to handle a broad variety of book sizes and thicknesses, making it suitable for both small job lots and high volume production. The key parameters are:

• Maximum punching and binding size: 510mm (punched side) × 800mm

• Minimum punching and binding size: 100mm (punched side) × 140mm

• Maximum book size for the conveyor: 420 × 420mm

• Width of paper for binding: 100mm to 520mm

For thickness, the machine punches 1‑6mm in one pass. The maximum punching thickness for standard products is 13mm, and for special products it reaches 16mm. If a book requires more than one punching pass, the machine can perform up to 5 punching times per book. This wide range allows you to produce everything from thin notebooks to thick table calendars without needing multiple machines.

High Speed with Reliable Stability

Productivity matters. This machine delivers a speed range of 800 to 2000 books per hour. You can run slower for delicate materials or crank up to full speed for large orders. Stability is maintained by the machine’s solid construction. With a net weight of 2000 kg, the frame absorbs vibration and keeps punching and closing accurate even at maximum speed. Operators can run continuous shifts without frequent jams or misalignments. The combination of high speed and stable operation means you meet tight deadlines while maintaining quality.

Easy Adjustment and Low Labor Requirement: Just 1‑2 Operators

Complex changeovers slow down production. This machine is built for easy adjustment. You can quickly switch between different book sizes, wire diameters, and pitches without specialized tools. The design philosophy prioritizes operator convenience. As a result, only 1‑2 operators are needed to run the entire line. One person feeds the cover and inner paper, while the other monitors output and quality. This low labor requirement directly reduces your cost per book. Even with easy adjustments, the machine keeps running at high speed without constant intervention.

Optional Calendar Hanger Device

For manufacturers of table calendars, adding a hanger (such as a wire or plastic hook) is often a separate manual step. This machine offers an optional calendar hanger device that integrates hanger attachment into the automatic binding cycle. After the wire‑o binding is complete, the device attaches the hanger automatically. This optional feature turns the machine into a dedicated calendar production line, saving you an extra work cell and reducing handling time. You can produce finished calendars in one pass without additional operators.

Hardcover Manual Punch to Improve Efficiency

Some products feature hard covers that are very thick or rigid. While the automatic punching line handles most materials smoothly, the optional hardcover manual punch gives you extra flexibility. This separate manual station allows an operator to punch hard covers offline at a comfortable pace, while the automatic line continues processing inner pages. Pre‑punched hard covers are then fed into the binding line. This approach prevents slowdowns on the automatic side and ensures that even the toughest covers are punched cleanly. For customers who run a mix of softcover and hardcover books, this hardcover manual punch significantly improves overall efficiency.

Complete Technical Parameters for Easy Reference

To help you evaluate and search for this machine, here are all original specifications in one clear list:

• Max punching and binding size: 510mm (punched side) × 800mm

• Min punching and binding size: 100mm (punched side) × 140mm

• Speed: 800‑2000 books per hour

• Punching thickness (one‑time): 1‑6mm

• Max punching thickness: 13mm

• Max punching thickness for special products: 16mm

• Max punching times for one book: 5 times

• Max book size for the conveyor: 420 × 420mm

• Double loop wire size: 1/4″ to 5/8″

• Pitch: 2/1 and 3/1

• Width of paper for binding: 100‑520mm

• Power: 220V / 50‑60Hz / 1PH / 4.5kw

• Air pressure: 7‑8 bar

• Net weight: 2000 kg

• Dimensions: 4800 × 2600 mm

These parameters cover all common wire‑o binding needs, from small notebooks to large table calendars. The power and air pressure requirements match standard industrial facilities.

Built for Continuous Production

A binding machine must run reliably day after day. The 2000 kg net weight and robust frame ensure that the machine stays aligned under high speed. The 4.5kw motor and 7‑8 bar pneumatic system provide consistent force for punching and closing. The design allows up to 5 punching times per book, so even very thick books can be processed without overloading any single station. With easy adjustment and only 1‑2 operators, this machine is ready for long production runs with minimal downtime.

What You Can Produce with This Machine

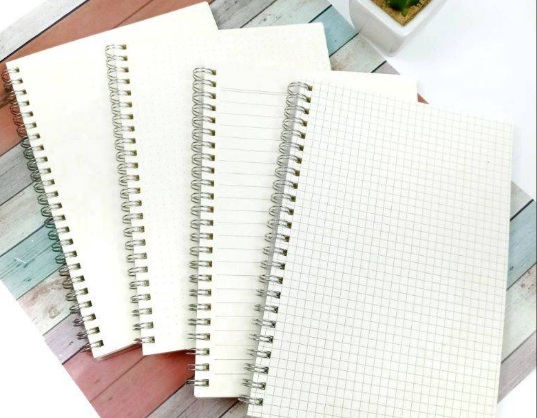

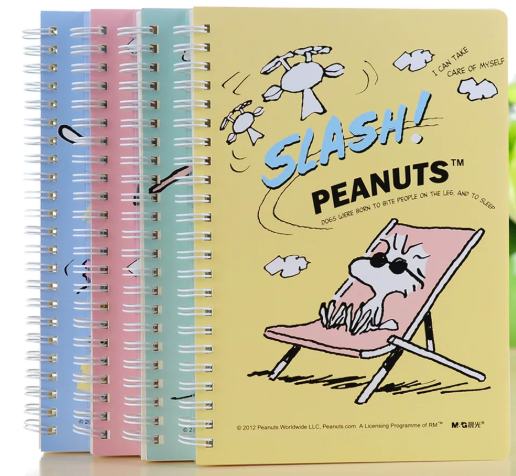

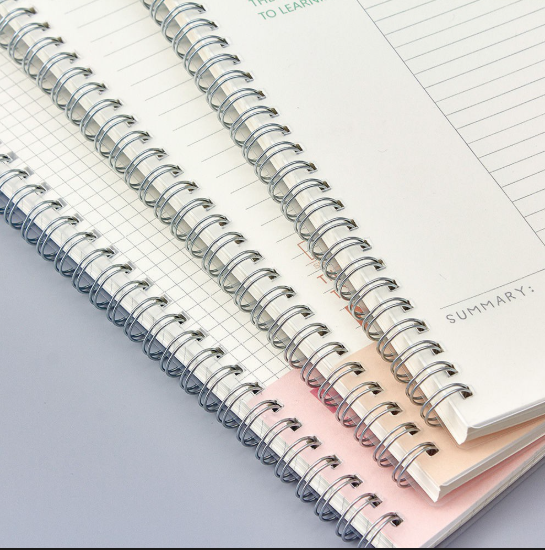

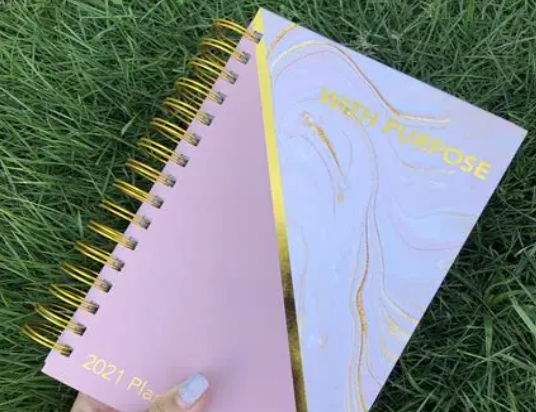

Based on the original description, this machine is designed for various double loop wire books, notebooks, and table calendars. The separate punching for bigger cover and inner paper makes it especially suitable for products where the cover is larger than the inner pages, such as presentation binders or decorative notebooks. With the optional calendar hanger device, you can produce ready‑to‑hang table calendars. The hardcover manual punch extends your capability to hardbound books. No matter which product you run, the speed of 800‑2000 books per hour and the wide size range from 100mm×140mm up to 510mm×800mm give you the flexibility to take on diverse orders.

Simple Integration into Your Binding Line

The machine requires a standard 220V / 50‑60Hz / 1PH power supply (4.5kw) and compressed air at 7‑8 bar. Its dimensions are 4800mm in length and 2600mm in width, with a net weight of 2000 kg. This footprint fits typical industrial bindery floors. Because the machine integrates unwinding, loop cutting, punching, conveying, and closing, you do not need separate unwinders or loop cutters. Just feed the spool of double loop wire (size 1/4″ to 5/8″), load your paper and covers, set the pitch (2/1 or 3/1), and start production. The easy adjustment feature means changeovers between different wire sizes or pitches are quick.

Conclusion: Improve Your Binding Efficiency Today

The Automatic Double Loop Punching and Wire-O Binding Machine delivers exactly what the specifications promise: integration of unwinding, loop cutting, conveying, and closing; separate punching for bigger cover and inner paper; support for various double loop wire books, notebooks, and table calendars; optional calendar hanger device and hardcover manual punch; operation by only 1‑2 people; easy adjustment; and high speed from 800 to 2000 books per hour with stable performance. All technical parameters—from the 510mm×800mm maximum size down to the 2000 kg net weight—are designed for real‑world production.

Stop using separate machines for each step. Reduce your labor to just 1‑2 operators while maintaining high output. Enjoy the flexibility of punching thicker special products up to 16mm and performing up to 5 punching passes per book. Whether you make wire‑o notebooks, table calendars, or custom double loop wire books, this machine is ready to improve your efficiency.

Contact us today for more details or a demonstration. Let us show you how this automatic binding solution can increase your throughput and lower your cost per book.
